Setup Microsft AD domain contoller

This how-to describes how to setup the MS AD domain controller node pxd-ad.

Overview

Setup

vagrant up pxd-ad

Show me

dkdjk

Bringing machine 'pxd-ad' up with 'virtualbox' provider...
==> pxd-ad: Importing base box 'c2platform/win2022'...

[KProgress: 10%
[KProgress: 90%
[K==> pxd-ad: Matching MAC address for NAT networking...
==> pxd-ad: Checking if box 'c2platform/win2022' version '0.1.0' is up to date...
==> pxd-ad: Setting the name of the VM: ansible-phx_pxd-ad_1752576491515_67436
==> pxd-ad: Clearing any previously set network interfaces...
==> pxd-ad: Preparing network interfaces based on configuration...
    pxd-ad: Adapter 1: nat
    pxd-ad: Adapter 2: hostonly
==> pxd-ad: Forwarding ports...
    pxd-ad: 5985 (guest) => 55985 (host) (adapter 1)
    pxd-ad: 5986 (guest) => 55986 (host) (adapter 1)
    pxd-ad: 22 (guest) => 2222 (host) (adapter 1)
==> pxd-ad: Running 'pre-boot' VM customizations...
==> pxd-ad: Booting VM...
==> pxd-ad: Waiting for machine to boot. This may take a few minutes...
    pxd-ad: WinRM address: 127.0.0.1:55985
    pxd-ad: WinRM username: vagrant
    pxd-ad: WinRM execution_time_limit: PT2H
    pxd-ad: WinRM transport: negotiate
==> pxd-ad: Machine booted and ready!
==> pxd-ad: Checking for guest additions in VM...
==> pxd-ad: Setting hostname...
==> pxd-ad: Waiting for machine to reboot...
==> pxd-ad: Configuring and enabling network interfaces...
==> pxd-ad: Mounting shared folders...
    pxd-ad: /vagrant => /home/ostraaten/git/gitlab/c2/ansible-phx
    pxd-ad: /software => /software/projects/phx
    pxd-ad: /root/.marker => /home/ostraaten/.marker
    pxd-ad: /software-cache => /software/projects/phx/cache
    pxd-ad: /home/vagrant/.marker => /home/ostraaten/.marker
    pxd-ad: /ansible-dev-collections => /home/ostraaten/git/gitlab/c2/ansible-dev-collections
    pxd-ad: /root/.local/share/marker => /home/ostraaten/.local/share/marker
    pxd-ad: /home/vagrant/.local/share/marker => /home/ostraaten/.local/share/marker
==> pxd-ad: Running provisioner: windows-sysprep...
==> pxd-ad: Configuring sysprep...
==> pxd-ad: Syspreping...
==> pxd-ad: Checking if box 'c2platform/win2022' version '0.1.0' is up to date...
==> pxd-ad: Clearing any previously set forwarded ports...
==> pxd-ad: Clearing any previously set network interfaces...
==> pxd-ad: Preparing network interfaces based on configuration...
    pxd-ad: Adapter 1: nat
    pxd-ad: Adapter 2: hostonly
==> pxd-ad: Forwarding ports...
    pxd-ad: 5985 (guest) => 55985 (host) (adapter 1)
    pxd-ad: 5986 (guest) => 55986 (host) (adapter 1)
    pxd-ad: 22 (guest) => 2222 (host) (adapter 1)
==> pxd-ad: Running 'pre-boot' VM customizations...
==> pxd-ad: Booting VM...
==> pxd-ad: Waiting for machine to boot. This may take a few minutes...
    pxd-ad: WinRM address: 127.0.0.1:55985
    pxd-ad: WinRM username: vagrant
    pxd-ad: WinRM execution_time_limit: PT2H
    pxd-ad: WinRM transport: negotiate
==> pxd-ad: Machine booted and ready!
==> pxd-ad: Checking for guest additions in VM...
==> pxd-ad: Setting hostname...
==> pxd-ad: Configuring and enabling network interfaces...
==> pxd-ad: Mounting shared folders...
    pxd-ad: /vagrant => /home/ostraaten/git/gitlab/c2/ansible-phx
    pxd-ad: /software => /software/projects/phx
    pxd-ad: /root/.marker => /home/ostraaten/.marker
    pxd-ad: /software-cache => /software/projects/phx/cache
    pxd-ad: /home/vagrant/.marker => /home/ostraaten/.marker
    pxd-ad: /ansible-dev-collections => /home/ostraaten/git/gitlab/c2/ansible-dev-collections
    pxd-ad: /root/.local/share/marker => /home/ostraaten/.local/share/marker
    pxd-ad: /home/vagrant/.local/share/marker => /home/ostraaten/.local/share/marker
==> pxd-ad: Machine already provisioned. Run `vagrant provision` or use the `--provision`
==> pxd-ad: flag to force provisioning. Provisioners marked to run always will still run.
==> pxd-ad: The Machine SID was changed from S-1-5-21-51764566-1011124836-2787823110 to S-1-5-21-25892634-3680924600-3759249411
==> pxd-ad: Running provisioner: shell...
    pxd-ad: Running: inline PowerShell script
==> pxd-ad: Running provisioner: ansible...
    pxd-ad: Running ansible-playbook...
[WARNING]: Collection community.windows does not support Ansible version 2.15.0
[WARNING]: Collection ansible.windows does not support Ansible version 2.15.0
[DEPRECATION WARNING]: community.general.yaml has been deprecated. The plugin
has been superseded by the the option `result_format=yaml` in callback plugin
ansible.builtin.default from ansible-core 2.13 onwards. This feature will be
removed from community.general in version 13.0.0. Deprecation warnings can be
disabled by setting deprecation_warnings=False in ansible.cfg.

PLAY [AD Domain Controller] ****************************************************

TASK [Gathering Facts] *********************************************************
ok: [pxd-ad]

TASK [c2platform.core.secrets : Stat secret dir] *******************************
ok: [pxd-ad -> localhost] => (item=/home/ostraaten/git/gitlab/c2/ansible-phx/secret_vars/development)
ok: [pxd-ad -> localhost] => (item=/runner/project/secret_vars/development)

TASK [c2platform.core.secrets : Include secrets] *******************************
ok: [pxd-ad] => (item=/home/ostraaten/git/gitlab/c2/ansible-phx/secret_vars/development)

TASK [c2platform.wincore.ad : Include ad_resources] ****************************
[WARNING]: Collection microsoft.ad does not support Ansible version 2.15.0
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_domain.yml for pxd-ad => (item= Ensure domain c2.org)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_powershell.yml for pxd-ad => (item= DNS should only listen on 192.168.61.11)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_domain_controller.yml for pxd-ad => (item= Domain controller)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_user.yml for pxd-ad => (item= tony)

TASK [c2platform.wincore.ad : Ensure existence of a domain] ********************
changed: [pxd-ad] => (item=c2.org)

TASK [c2platform.wincore.ad : Debug] *******************************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/debug.yml for pxd-ad

TASK [c2platform.wincore.ad : Run PowerShell scripts] **************************
changed: [pxd-ad] => (item=DNS should only listen on 192.168.61.11)

TASK [c2platform.wincore.ad : Debug] *******************************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/debug.yml for pxd-ad

TASK [c2platform.wincore.ad : Manage domain controller/member] *****************
ok: [pxd-ad] => (item=c2.org)

TASK [c2platform.wincore.ad : Debug] *******************************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/debug.yml for pxd-ad

TASK [c2platform.wincore.ad : Manage AD user] **********************************
changed: [pxd-ad] => (item=c2.org)

TASK [c2platform.wincore.ad : Debug] *******************************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/debug.yml for pxd-ad

TASK [c2platform.wincore.ad : Include ad_resources_types] **********************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_dns_client.yml for pxd-ad => (item=ad_dns_client)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/ad_membership.yml for pxd-ad => (item=ad_membership)

TASK [c2platform.wincore.ad : Configure DNS lookup] ****************************
changed: [pxd-ad] => (item=Use AD DNS sever → 192.168.61.11)

TASK [c2platform.wincore.ad : Manage domain controller/member] *****************
ok: [pxd-ad] => (item=c2.org)

TASK [c2platform.wincore.ad : Debug] *******************************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/ad/tasks/debug.yml for pxd-ad

TASK [c2platform.wincore.win : Include win_resources] **************************
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_shortcut.yml for pxd-ad => (item=0-bootstrap-dev Shortcuts)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_chocolatey.yml for pxd-ad => (item=0-bootstrap-dev NuGet and Firefox)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_file.yml for pxd-ad => (item=0_bootstrap Apps folder)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_powershell.yml for pxd-ad => (item=ad Don't register connection's addresses in DNS)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_shortcut.yml for pxd-ad => (item=ad Shortcuts)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_file.yml for pxd-ad => (item=share C2 Share)
included: /home/ostraaten/git/gitlab/c2/ansible-dev-collections/ansible_collections/c2platform/wincore/roles/win/tasks/win_share.yml for pxd-ad => (item=share c2-share)

TASK [c2platform.wincore.win : Manage shortcuts] *******************************
changed: [pxd-ad] => (item=%Public%\Desktop\FireFox (Shared Profile).lnk)
changed: [pxd-ad] => (item=%Public%\Desktop\Downloads.lnk)

TASK [c2platform.wincore.win : Manage Chocolatey packages] *********************
changed: [pxd-ad] => (item=nuget.commandline present)
changed: [pxd-ad] => (item=firefox present)
changed: [pxd-ad] => (item=git present)

TASK [c2platform.wincore.win : Create, touch or remove files or directories] ***
changed: [pxd-ad] => (item=Apps)

TASK [c2platform.wincore.win : Run PowerShell scripts] *************************
changed: [pxd-ad] => (item=Don't register connection's addresses in DNS)

TASK [c2platform.wincore.win : Manage shortcuts] *******************************
changed: [pxd-ad] => (item=%Public%\Desktop\DNS Manager.lnk)
changed: [pxd-ad] => (item=%Public%\Desktop\Active Directory Users and Computers.lnk)
changed: [pxd-ad] => (item=%Public%\Desktop\Group Policy Objects (GPOs).lnk)

TASK [c2platform.wincore.win : Create, touch or remove files or directories] ***
changed: [pxd-ad] => (item=D:\c2-share)

TASK [c2platform.wincore.win : Manage Windows Share] ***************************
changed: [pxd-ad] => (item=c2-share)

PLAY RECAP *********************************************************************
pxd-ad                     : ok=34   changed=11   unreachable=0    failed=0    skipped=16   rescued=0    ignored=0

Verify

Primary Domain Controller and Domain

To verify that c2.org is the Domain and pxd-ad is the primary domain controller, SSH into the node, start powershell and then run:

systeminfo | Select-String "Domain"

Show me

Microsoft Windows [Version 10.0.20348.707]
(c) Microsoft Corporation. All rights reserved.

c2\vagrant@PXD-AD C:\Users\vagrant>powershell
Windows PowerShell
Copyright (C) Microsoft Corporation. All rights reserved.

Install the latest PowerShell for new features and improvements! https://aka.ms/PSWindows

PS C:\Users\vagrant> systeminfo | Select-String "Domain"

OS Configuration:          Primary Domain Controller
Domain:                    c2.org


PS C:\Users\vagrant>

Listening IP Address

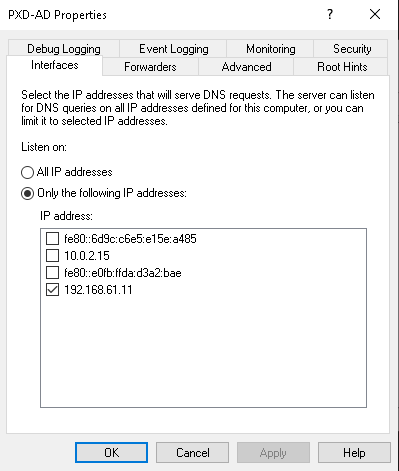

Open the DNS Manager and check the properties of the DNS server PXD-AD. Only 192.168.61.11 should be enabled as a listening IP address.

Dig on Vagrant Host

On your Ubuntu laptop, run

dig @192.168.61.11 c2.org

This should resolve c2.org to 192.168.61.11.

Show me

ostraaten@mpc2:~$ dig @192.168.61.11 c2.org

; <<>> DiG 9.18.30-0ubuntu0.22.04.2-Ubuntu <<>> @192.168.61.11 c2.org
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 59036
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4000
;; QUESTION SECTION:
;c2.org.				IN	A

;; ANSWER SECTION:
c2.org.			600	IN	A	192.168.61.11
c2.org.			600	IN	A	10.0.2.15

;; Query time: 0 msec
;; SERVER: 192.168.61.11#53(192.168.61.11) (UDP)
;; WHEN: Tue Jul 15 13:19:44 CEST 2025
;; MSG SIZE  rcvd: 67

Verify domain member

Start for example pxd-win-devtop and Verify that the computer is part of the domain c2.org:

vagrant up pxd-win-devtop

Again, use systeminfo command to check the “Domain”

systeminfo | Select-String "Domain"

Show me

PS C:\Users\vagrant> systeminfo | Select-String "Domain"

Domain:                    c2.org

On Linux

sudo realm list

Shoudl return

Show me

root@pxd-rproxy1:/etc/apache2/sites-enabled# realm list
c2.org
  type: kerberos
  realm-name: C2.ORG
  domain-name: c2.org
  configured: kerberos-member
  server-software: active-directory
  client-software: sssd
  required-package: sssd-tools
  required-package: sssd
  required-package: libnss-sss
  required-package: libpam-sss
  required-package: adcli
  required-package: samba-common-bin
  login-formats: %U
  login-policy: allow-realm-logins

/etc/sssd/sssd.conf

root@pxd-rproxy1:/etc/apache2/sites-enabled# sudo cat /etc/sssd/sssd.conf

[sssd] domains = c2.org config_file_version = 2 services = nss, pam

[domain/c2.org] default_shell = /bin/bash krb5_store_password_if_offline = True cache_credentials = True krb5_realm = C2.ORG realmd_tags = manages-system joined-with-adcli id_provider = ad fallback_homedir = /home/%u@%d ad_domain = c2.org use_fully_qualified_names = False ldap_id_mapping = True access_provider = ad ad_gpo_access_control = permissive

Test user resolution

root@pxd-rproxy1:/etc/apache2/sites-enabled# id tony@c2.org uid=212801104(tony) gid=212800513(domain users) groups=212800513(domain users),212800512(domain admins),212800572(denied rodc password replication group)

Ping

root@pxd-rproxy1:/etc/apache2/sites-enabled# ping pxd-ubuntu-devtop PING pxd-ubuntu-devtop(pxd-ubuntu-devtop.lxd (fd42:e2df:ed54:72de:216:3eff:fe09:dccb)) 56 data bytes 64 bytes from pxd-ubuntu-devtop.lxd (fd42:e2df:ed54:72de:216:3eff:fe09:dccb): icmp_seq=1 ttl=64 time=0.233 ms 64 bytes from pxd-ubuntu-devtop.lxd (fd42:e2df:ed54:72de:216:3eff:fe09:dccb): icmp_seq=2 ttl=64 time=0.258 ms ^C — pxd-ubuntu-devtop ping statistics — 2 packets transmitted, 2 received, 0% packet loss, time 1001ms

Feedback

Was this page helpful?

Glad to hear it! Please tell us how we can improve.

Sorry to hear that. Please tell us how we can improve.

Last modified August 27, 2025: phx dev save C2-633 (3b38443)

Setup Microsft AD domain contoller

Categories:

Tags:

Overview

Setup

Verify

Primary Domain Controller and Domain

Listening IP Address

Dig on Vagrant Host

Verify domain member

Feedback
