Use Dynamic Inventory in Development

Guideline for using dynamic inventory in Ansible development environments as a concrete example to illustrate future full automation for organizations new to Ansible.

Tags:

Projects: c2platform/phx/ansible

Adopt dynamic inventory in development environments to create a concrete, working example that demonstrates how full automation will work in the future, once all provisioning aspects are automated without manual steps. This also optimizes the development setup as a secondary benefit.

Problem

For organizations new to automation, dynamic inventory may offer limited immediate value, as manual steps often need automation first.

Unfamiliarity with Ansible and inventory mechanics, like precedence rules, can lead to suboptimal solutions. For instance, teams might automate adding servers to the inventory project to ease tasks for Ansible operators.

This approach has two issues:

Managing the inventory file with Ansible groups and nodes is not overly complex, and the Ansible operator requires a thorough understanding of it regardless, as it forms the foundation of effective automation.
Automating this “complexity” is naturally resolved when adopting dynamic inventory.

Context

In Dutch government organizations starting with automation, familiarity with Ansible is often limited, let alone with concepts like dynamic inventory. This is the primary context.

Dynamic inventory represents a future milestone. In a mature professional environment, a request in tools like vRA for a server or full environment (multiple servers) could suffice. An Ansible operator would only need the vRA portal to provision. The vRA setup applies labels that a dynamic inventory plugin uses for complete provisioning, without altering the inventory project.

Solution

Start with dynamic inventory in the development environment, where it is simple to implement. Use this working example to explain and illustrate benefits to organizations new to Ansible, showing how it enables fully automated provisioning without manual steps. This demonstrates future scalability and simplifies inventory management as automation matures.

Benefits

Provides a practical example to guide organizations toward advanced automation.
Reduces manual inventory updates as infrastructure scales.
Builds Ansible understanding through real-world application.
Prepares teams for production-like automation.

Examples and Implementation

VMware vRealize Automation (vRA)

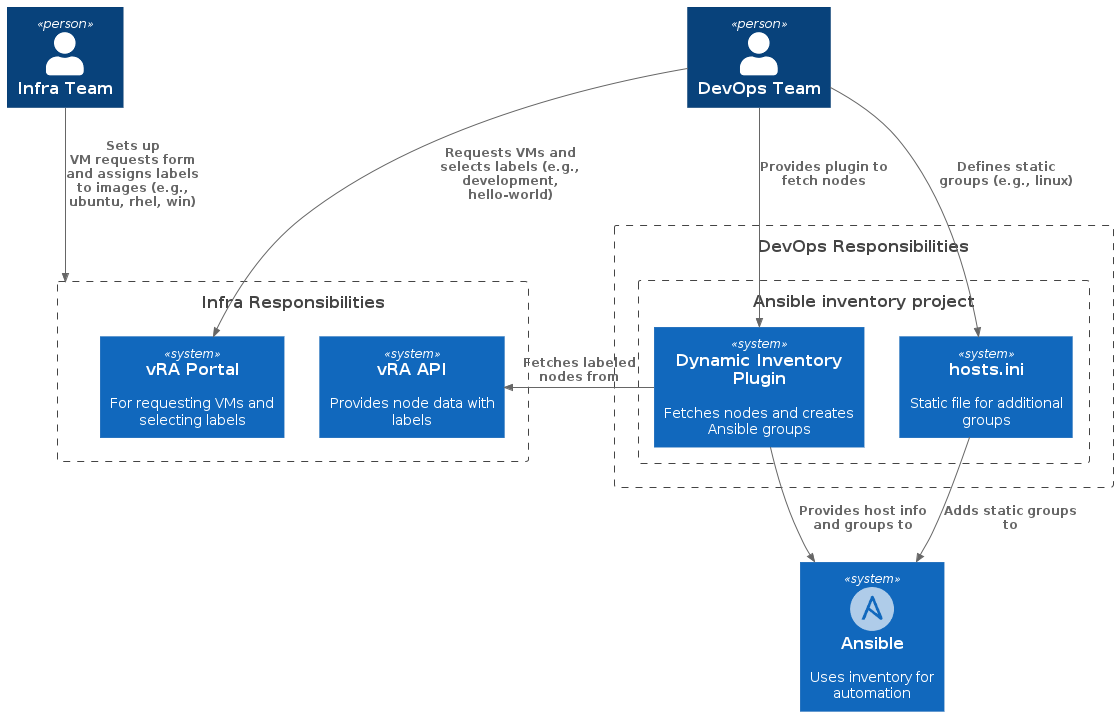

This diagram illustrates the collaborative roles of the infra team and DevOps team in a vRA-based environment:

The infra team sets up vRA for VM requests via the vRA Portal and assigns labels to images (e.g., ubuntu, ubuntu24, rhel, rhel9, win, win2022).
The DevOps team selects predefined environment labels (e.g., development, test, acceptance, production) and application role labels (e.g., hello-world) through the portal.
The DevOps team uses a dynamic inventory plugin to fetch labeled nodes from the vRA API, generating host information and Ansible groups.
Additional static groups (e.g., linux) are defined in a hosts.ini file for broader targeting, remaining static after initial setup. This file is part of the Ansible inventory project.

Table illustrating a labeling scheme for images and VMs, showing how vRA labels map to Ansible groups and the responsibilities of Infra and DevOps teams.

Type	Infra Team	DevOps Team	Label(s)	Ansible Group(s)	Description
VM Image	Responsible		`ubuntu` `ubuntu24`	`ubuntu` `ubuntu24`	Labels for Ubuntu 24-based images; forms an Ansible group for all Ubuntu hosts
VM Image	Responsible		`rhel` `rhel9`	`rhel` `rhel9`	Labels for Red Hat Enterprise Linux 9 images; groups RHEL hosts.
VM Image	Responsible		`win` `win2022`	`win` `win2022`	Label for Windows 2022 images; groups all Windows hosts.
DTAP	Provides options	Selects	`development` `test` `acceptance` `production`	`development` `test` `acceptance` `production`	Environment labels; assigns hosts to a specific environment.
Service/Application	Provides options	Selects	`hello-world`	`hello-world`	Application role label; creates a group for hosts running “hello-world” app.
Ansible Inventory		Responsible	`linux`	`linux`	Static group defined in `hosts.ini` for broader targeting of Linux hosts.

Example in Development

The inventory plugin for Vagrant illustrates how the vRA example would work. It operates on the same fundamental principles, providing a concrete example of how labels in the virtualization technology—vRA in production-like domains or Vagrant in development—are used with a plugin to dynamically generate host information and define Ansible groups.

Inventory Plugin for Vagrant

The PHX reference implementation c2platform/phx/ansible contains an example of a plugin for dynamic inventory. The plugin plugins/inventory/vagrant.py reads Vagrantfile.yml to dynamically generate the inventory. It adds hosts, sets variables like IP addresses, and assigns groups based on prefixes, labels, and additional INI files. It can also export the generated inventory to an INI file for debugging or integration.

plugins/inventory/vagrant.py

# pylint: disable=super-with-arguments
#!/usr/bin/env python3
import os
import yaml
from ansible.errors import AnsibleError
from ansible.plugins.inventory import BaseInventoryPlugin
import configparser
import re


class InventoryModule(BaseInventoryPlugin):
    NAME = "vagrant"

    def verify_file(self, path):
        return path.endswith((".yml", ".yaml")) and "Vagrantfile" in os.path.basename(
            path
        )

    def parse(self, inventory, loader, path, cache=True):
        super(InventoryModule, self).parse(inventory, loader, path, cache)
        try:
            with open(path, "r", encoding="utf-8") as file_handle:
                data = yaml.safe_load(file_handle)
        except Exception as exception_error:
            raise AnsibleError(
                f"Error loading Vagrantfile: {str(exception_error)}"
            ) from exception_error
        boxes = data.get("boxes")
        defaults = data.get("defaults", {})
        default_prefix = defaults.get("prefix")
        for node in data.get("nodes", []):
            nodename = node.get("name")
            host_prefix = node.get("prefix", default_prefix)
            host = f"{host_prefix}-{nodename}"
            if not host:
                continue
            self.inventory.add_host(host)
            ip_address = node.get("ip-address")
            if ip_address:
                self.inventory.set_variable(host, "ansible_host", ip_address)
            # Determine environment group based on last letter of prefix
            if host_prefix:
                last_char = host_prefix[-1].lower()
                env_group = None
                if last_char == "d":
                    env_group = "development"
                elif last_char == "t":
                    env_group = "test"
                elif last_char == "a":
                    env_group = "acceptance"
                elif last_char == "p":
                    env_group = "production"
                if env_group:
                    self.inventory.add_group(env_group)
                    self.inventory.add_child(env_group, host)
            # Labels
            node_labels = node.get("labels", [])
            box_labels = boxes.get(node.get("box", ""), {}).get("labels", [])
            for label in node_labels + box_labels:
                self.inventory.add_group(label)
                if label != host:
                    self.inventory.add_child(label, host)

        # Handle additional inventory files
        inventory_files = defaults.get("inventory", [])
        for inv_file in inventory_files:
            inv_path = os.path.join(os.path.dirname(path), inv_file)
            if os.path.exists(inv_path):
                self._parse_ini(inv_path)

        # Export to INI if configured
        inventory_export = defaults.get("inventory_export")
        if inventory_export:
            export_path = os.path.join(os.path.dirname(path), inventory_export)
            self._write_ini(export_path)

    def _parse_ini(self, ini_path):
        print(f"ini_path: {ini_path}")
        config = configparser.ConfigParser(allow_no_value=True)
        with open(ini_path, "r", encoding="utf-8") as f:
            config.read_file(f)

        for section in config.sections():
            if ":" in section:
                group_name, section_type = section.split(":", 1)
                group_name = group_name.strip()
                section_type = section_type.strip()
                if section_type == "children":
                    if group_name not in self.inventory.groups:
                        self.inventory.add_group(group_name)
                    for child in config.options(section):
                        child = child.strip()
                        if child:
                            self.inventory.add_group(child)
                            self.inventory.add_child(group_name, child)
                elif section_type == "vars":
                    if group_name not in self.inventory.groups:
                        self.inventory.add_group(group_name)
                    for var, value in config.items(section):
                        value = value.strip() if value else None
                        self.inventory.set_variable(group_name, var, value)
            else:
                # Regular group
                self.inventory.add_group(section)
                for host in config.options(section):
                    host = host.strip()
                    if host:
                        # Check if it's a host with vars, but in simple ini, options are hosts
                        # If there's value, it might be port or something, but for now assume host
                        self.inventory.add_host(host, group=section)
                        # If there are vars like host=var, but in standard ini, hosts are keys with no value

        # Handle host vars if any, but in standard ini, host vars are in [host:vars] which we handle above

    def _write_ini(self, ini_path):
        config = configparser.ConfigParser(allow_no_value=True)

        # Add groups and hosts
        for group_name, group in self.inventory.groups.items():
            if group_name == 'all' or group_name == 'ungrouped':
                continue
            config.add_section(group_name)
            for host in group.hosts:
                config.set(group_name, host.name, None)

        # Add children
        for group_name, group in self.inventory.groups.items():
            if group.child_groups:
                section = f"{group_name}:children"
                config.add_section(section)
                for child in group.child_groups:
                    config.set(section, child.name, None)

        # Add group vars
        for group_name, group in self.inventory.groups.items():
            vars_dict = group.get_vars()
            if vars_dict:
                section = f"{group_name}:vars"
                config.add_section(section)
                for k, v in vars_dict.items():
                    config.set(section, k, str(v))

        # Add host vars
        for host_name, host in self.inventory.hosts.items():
            vars_dict = host.get_vars()
            # Remove ansible_host as it's usually set separately
            vars_dict = {k: v for k, v in vars_dict.items() if k != 'ansible_host'}
            if vars_dict:
                section = f"{host_name}:vars"
                config.add_section(section)
                for k, v in vars_dict.items():
                    config.set(section, k, str(v))

        # Add [host] sections for hosts with ansible_host
        for host_name, host in self.inventory.hosts.items():
            ansible_host = host.get_vars().get('ansible_host')
            if ansible_host:
                section = host_name
                if not config.has_section(section):
                    config.add_section(section)
                config.set(section, f'ansible_host={ansible_host}')

        with open(ini_path, 'w', encoding='utf-8') as f:
            config.write(f)

Vagrantfile.yml

The Vagrantfile.yml defines the pxd-s3 node using the ubuntu22-lxd box, assigns IP 192.168.60.14, and specifies the playbook mgmt/s3 for provisioning. Vagrant uses this to create and configure the node.

Vagrantfile.yml

22  ubuntu22-lxd:
23    name: c2platform/ubuntu-jammy
24    version: 0.1.1
25    provider: lxd
26    labels: [ubuntu, lxd, ubuntu22]

Vagrantfile.yml

264  - name: s3
265    short_description: S3
266    description: MinIO S3
267    box: ubuntu22-lxd
268    ip-address: 192.168.60.14
269    plays:
270      - mgmt/s3
271    labels:
272      - s3
273      - s3_download_server

The dynamic inventory plugin assigns this node to the Ansible groups s3 and s3_download_server based on its labels. In this test setup, pxd-s3 belongs to both groups, serving as both the S3 server and the test client. In production-like scenarios, these roles would be separated.

hosts.ini

This static inventory file provides base groups and variables.

hosts.ini

# Note: hosts and groups come from Vagrantfile.yml primarily

[linux:children]
ubuntu
rhel

[win_ssh_server:children]
win

[linux:vars]
ansible_user=vagrant
ansible_password=vagrant

[win:vars]
#ansible_connection=ssh
#ansible_shell_type=cmd
ansible_user=vagrant
ansible_password=vagrant
ansible_connection=winrm
#ansible_port=5985
ansible_winrm_transport=basic
ansible_winrm_server_cert_validation=ignore

Group Membership Example

This section demonstrates how Ansible groups are dynamically assigned to a node using the dynamic inventory plugin and static definitions.

Let’s take the node pxd-s3 as an example. Using the debug module, we can query the group_names for pxd-s3. See below.

ansible -m debug -a 'msg={{group_names}}' pxd-s3

θ61° [:ansible-phx]└2 master(+2/-1) ± ansible -m debug -a 'msg={{group_names}}' pxd-s3
ini_path: /home/onknows/git/gitlab/c2/ansible-phx/hosts.ini
pxd-s3 | SUCCESS => {
    "msg": [
        "development",
        "linux",
        "lxd",
        "s3",
        "s3_download_server",
        "ubuntu",
        "ubuntu22"
    ]
}

The Ansible groups are derived as follows:

lxd, ubuntu, and ubuntu22 originate from the definition of the Vagrant box ubuntu22-lxd in Vagrantfile.yml.
s3 and s3_download_server from the definition of the node pxd-s3 in Vagrantfile.yml.
linux from hosts.ini.

Additional Information

For more on GitLab Runner as a control node: Using GitLab Runner as Ansible Control Node
For more information about the pxd-s3 node: Create and Test an S3 Service
Ansible Inventory Project: A structured collection of files used for managing hosts and configurations. It typically includes inventory files, playbooks, host configurations, group variables, and Ansible vault files.
